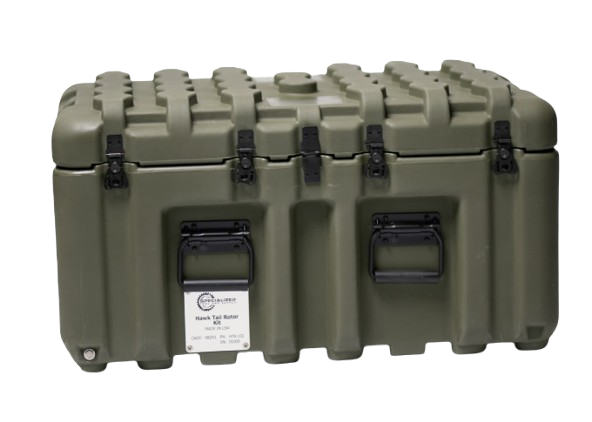

HTR – Tail Rotor

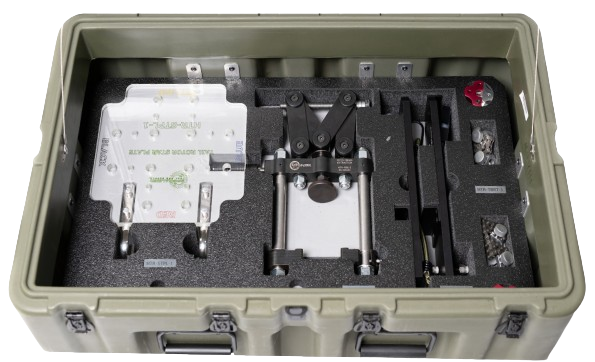

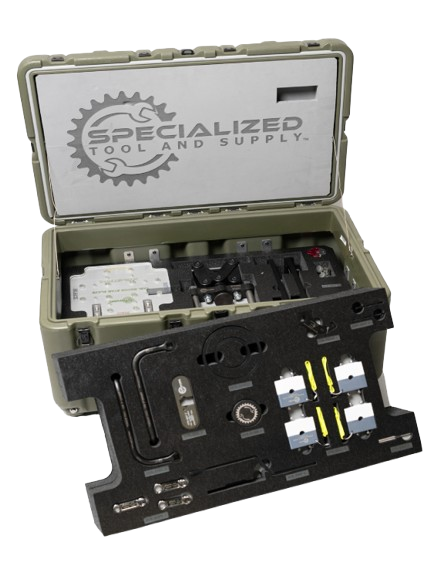

TOOLS OFFERED FOR TAIL ROTOR

TAIL ROTOR STAR PLATE
TAIL ROTOR QUICK DISCONNECT TOOL
TURNBUCKLE RIGGING TOOL
TAIL PYLON TORQUE ADAPTER SET
STABILATOR BOLT REMOVER
STABILATOR POSITION SENSOR LOCK PIN
OUTBOARD CENTER BUSHING RETAINER
PROTRACTOR FIXTURE
TAIL ROTOR PIVOT BEARING WRENCH
TAIL ROTOR SEAL INSTALLATION SET
PITCH BEAM EXTRACTOR
PITCH BEAM NUT WRENCH
SPRING CYLINDER CLAMP
TORUE ADAPTER SET
TAIL ROTOR INSPECTION TOOL
A/L OR M

Featured Items

Tail Rotor Inspection Tool (A/L or M)

The design integrates a multi-inspection tool for precise determination of torque in upper and inboard retention plate bolts, minimizing improper hardware stacks, ensuring accurate gapping of IVHMS interrupter to prevent false readings, and precise gapping of the de-ice distributor.

Spring Cylinder Clamp

The tool prevents compression of Tail Rotor Spring Cylinders during disconnection by being installed before disconnecting from the Spring Cylinder Support and removed afterward upon reconnection.

Pitch Beam Extractor

Utilizing the appropriate tool enables the maintainer to execute R&I tasks efficiently and effectively. The interface minimizes the risk of damage to the stabilator, pitch beam, and change shaft, reducing the potential for injury to the maintainer.

Pitch Beam Nut Wrench

The spanner is designed to remove the Pitch Beam Nut safely, reducing the risk of damage to the nut and injury to the maintainer, with a specified torque set between 900-1100 in. lbs., preventing slipping and potential hazards during use.
